New CEBIS MOBILE with touch display for LEXION 700/600

With the new CEBIS MOBILE for the LEXION 700/600 series, CLAAS sets new standards in operation of the established CRUISE PILOT, CEMOS DIALOG and CEMOS AUTOMATIC operator assistance systems.

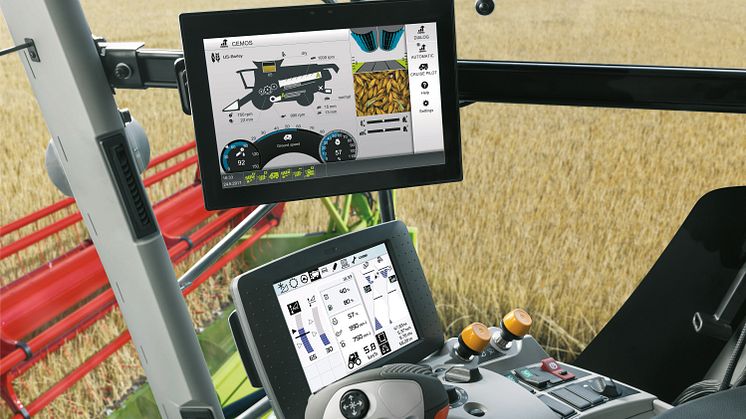

The new CEBIS MOBILE 12-inch colour touchscreen brings the functions of all the current assistance systems together, allowing the operator to maintain full control over machine operating states at all times from a single terminal and adjust all the assistance system functions as necessary using the standardised menu-guided interface, simply by touching the screen.

Clear and intuitive – the new 12-inch screen

The high-resolution colour 12-inch screen incorporated into the new CEBIS MOBILE makes it easy to monitor machine states thanks to clearly structured data and intuitive touchscreen operation. The combine harvester silhouette which appears in the main area of the screen continuously displays the settings for all the main functional areas of the combine, such as rotor and fan speed, grain moisture and grain tank fill level. The image from the GRAIN QUALITY camera also appears on the screen, enabling the operator to monitor crop quality at all times, while the evaluation carried out by the GRAIN QUALITY camera helps the CEMOS AUTO CLEANING system to optimise grain cleanliness. In addition, the operator can use two simple slide controllers on the screen to set the optimum balance between grain cleanliness, straw quality and throughput.

Integrated cockpit

In the lower area of the screen is the “cockpit” which displays the CRUISE PILOT status. This includes the forward speed, throughput in the feeder housing, throughput in tonnes per hour and engine load. The system also shows the factor that is limiting performance under the current operating conditions. Instead of using CEBIS, the operator can also adjust all parameters of the CRUISE PILOT functions from the new CEBIS MOBILE. Menu navigation for the adjustments required is identical in all three assistance systems.

CEMOS AUTOMATIC guarantees optimum performance

The integrated CEMOS AUTOMATIC covers all the operator assistance systems which ensure optimum machine performance despite highly varying operating conditions. These include AUTO SEPARATION for automatic control of residual grain separation, AUTO CLEANING for automatic adjustment of the cleaning process and AUTO SLOPE which adjusts the fan speed when the machine is working on a slope.

CEMOS DIALOG – the operator's partner

The proven CEMOS DIALOG for machine monitoring is also fully integrated into the new CEBIS MOBILE. This feature is always active in the background, permanently monitoring all work processes, analysing the data and prompting the driver if the machine’s potential is not being utilised to the full. A message appears on the CEBIS MOBILE screen and the driver can view a suggestion for optimising the settings simply by tapping the screen. Alternatively, the operator can also actively access the CEMOS DIALOG functions from the CEBIS MOBILE screen to view suggested optimisations for a specific operating range. Again, the suggestions displayed can be accepted or rejected simply by touching the screen.

The new CEBIS MOBILE will be available in all LEXION 700/600 models from the 2018 harvesting season.
